Product Introduction

Model：

GPE-DD201

Product Introduction：

Product Description ： 1、GPS External Antenna，dimension：33mmX36mmX13.5mm； 2、High gain, high sensitivity, fast positioning supported； 3、Mounting Method：Magnet/Adhesive； 4、Cable length：RG174(0-8m)； 5、Both factory-in

Product description

Product Description：
1、GPS External Antenna，dimension：33mmX36mmX13.5mm；
2、High gain, high sensitivity, fast positioning supported；
3、Mounting Method：Magnet/Adhesive；
4、Cable length：RG174(0-8m)；
5、Both factory-installed and aftermarket-installed GPS navigation and positioning equipment are supported.

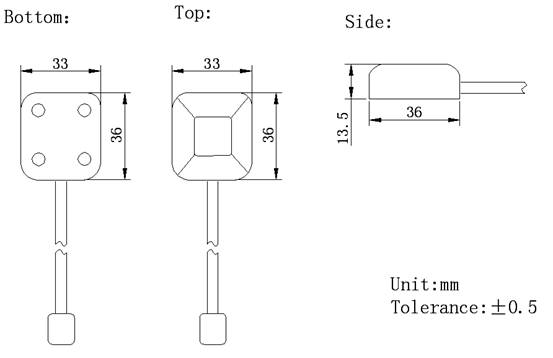

Product Dimension：

Product Introduction：

Antenna	Center Frequency	1575.42±1.023MHz
	Bandwidth	10MHz min
	Peak Gain	5dBic
	Axial Ratio	3.0dB max
	V.S.W.R	1.5dB max
	Impedance	50Ω
	Polarization	RHCP
LNA	Center Frequency	1575.42±1.023MHz
	Gain	30±2dB
	Noise Figure	1.5dB max
	Ex-band Attenuation	40dB@CF+60MHz/40dB@CF-60MHz
	Voltage	DC 3.0~5.0V
	Current	11±2 mA
	V.S.W.R	2.0dB max
Mechanical	Cable	RG174
	Connector	GT5/SMA/FAKRA or others
	Radome Material	ABS
	Ingress Protection	IP67
	Mounting Method	Magnet/Adhesive
Environmental	Operating Temperature	-40℃ to +85℃
	Relative Humidity	Up to 95℃
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
